Block Integrations
How to integrate your Agent with Meta Pixel
Learn how to use the Pixel block to track user interactions and events with Meta Pixel in your chatbot agents.
The Pixel Integration Block allows you to seamlessly track user interactions and events by embedding a Meta Pixel into your Agent’s flow. Here’s how it works and how to configure it.
How the Pixel Block Works
When a Pixel Block is added to your flow:
- Initialization:
The Meta Pixel is initialized, and aPageView
event is automatically tracked as soon as the page loads.
- Event Tracking:
Specific events, such as a form submission or a button click, are tracked when the block is executed.
Configuration Steps
1. Finding my Meta Pixel ID
- Go to your Meta Events Manager and select the Pixel you want to use.
- Copy the Pixel ID from the settings page.
2. Adding the Pixel ID
- Enter your Meta Pixel ID (e.g.,
73627907634
) into the input field in the configuration box. - This ID connects your Agent flow to your Meta Ads account for event tracking.
3. Event Tracking
- Toggle the “Track event” option to enable event tracking.
- Specify the event name (e.g.,
Lead
) in the dropdown or input field. - Optionally, click Add parameter to pass additional data (like user information) with the event.

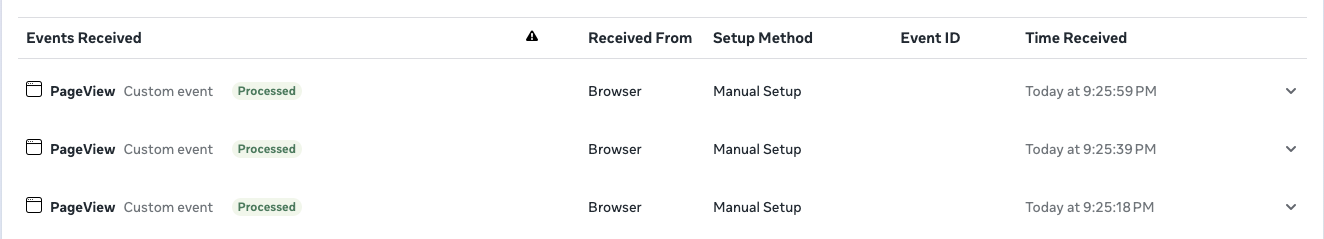

4. How to checkl if the Pixel is working
- Use the Meta Events Manager to verify that your Pixel is firing correctly.
- Select your Pixel and navigate to the Test Events tab.
- Check for the
PageView
event in the Events Received section for any custom events you have set up.
Example Use Case
Flow Example:
Step | Description |
---|---|
Hi there! | The Agent greets the user. |
What’s your name? | The Agent asks for the user’s name. |
Collect Name | User inputs their name, which is stored. |
Track Lead | Tracks the event “Lead” with user details. |
Event Tracking:
In the example image:
- Pixel ID:
73627907634
is used. - The
Lead
event is tracked whenever the block is executed. - Optional parameters can include user data (e.g.,
Name
orEmail
).
Best Practices
- Test Your Pixel: Use the Meta Events Manager to ensure the Pixel is working and events are logged correctly.
- Unique Event Names: Use descriptive and unique event names to avoid confusion in tracking.
- Add Parameters: Include user data, such as
Name
orEmail
, to make your event tracking more insightful.
