How to integrate Release0 with Supabase to create, update, and query database records in your chatbot agent

​

Overview

Supabase is an open-source backend-as-a-service that provides a PostgreSQL database with real-time capabilities, authentication, and APIs. When integrated with a Release0 agent, it enables powerful, data-driven interactions that enhance the functionality and personalization of your automated experiences.

​

Advantages of Using Supabase with Release0 Agent

Connecting Supabase to your Release0 agent allows you to:

• Store and retrieve user data in a robust PostgreSQL database
• Create responsive flows with real-time database-driven logic
• Adapt dialogs based on stored user preferences and history
• Create new records (e.g., user registrations, form submissions)
• Read data for personalization and decision-making
• Update existing records based on conversation outcomes
• Delete entries when necessary

Example: Store user preferences and retrieve them in future conversations using {{user.preference_id}}.

This guide explains how to use the Supabase block to interact with your PostgreSQL tables in an Agent Dialog. You can perform full CRUD operations (Create, Read, Update, Delete) on your Supabase tables.

​

Setting Up Supabase Authentication

To connect Release0 with Supabase, you’ll need:

​

1. Supabase Project URL

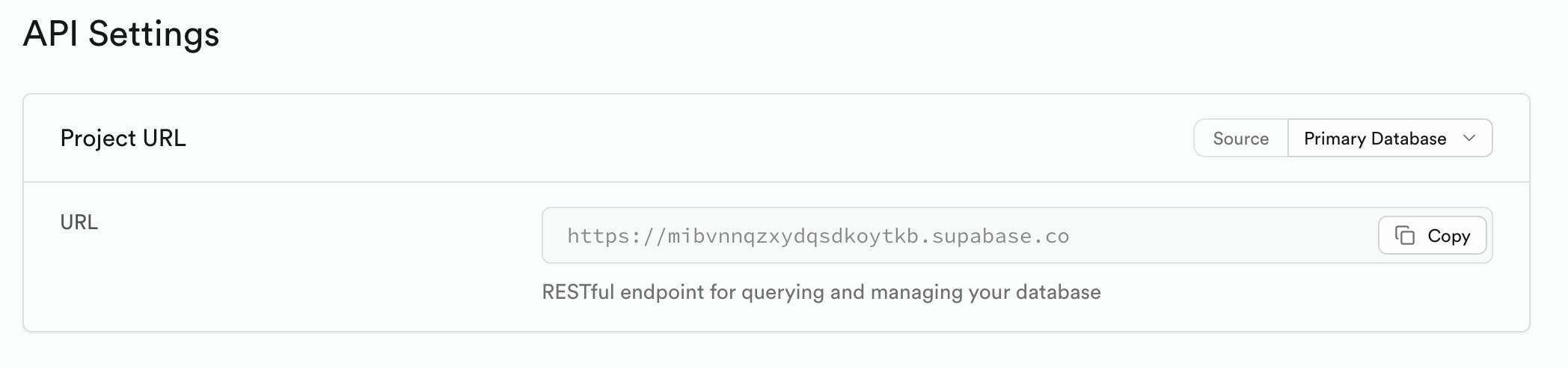

Your project URL can be found in your Supabase dashboard under Settings > API. It follows this format:

https://your-project-id.supabase.co

​

2. Service Role API Key

You’ll need the service_role key (not the anon key) for full database access:

1. Go to your Supabase dashboard
2. Navigate to Settings > API
3. Copy the service_role key under “Project API keys”

​

Available Actions

The Supabase block provides four main actions:

​

1. Create Row

Add new records to your database tables.

Required Fields:

• Table Name: The name of the table to insert into
• Fields: Key-value pairs for the data to insert

Optional Fields:

• Schema: Database schema (defaults to “public”)
• Response Mapping: Map returned data to variables

​

2. Get Rows

Retrieve records from your database tables with advanced filtering.

Required Fields:

• Table Name: The name of the table to query

Optional Fields:

• Schema: Database schema (defaults to “public”)
• Return Type: Choose “All”, “First”, “Last”, or “Random”
• Order By Column: Column to sort results
• Order Direction: “asc” (ascending) or “desc” (descending)
• Filter Conditions: Add WHERE conditions
• Select Columns: Specify which columns to return (defaults to ”*”)
• Limit: Maximum number of records to return
• Response Mapping: Map returned data to variables

​

3. Update Rows

Modify existing records in your database tables.

Required Fields:

• Table Name: The name of the table to update
• Filter Conditions: Conditions to identify which records to update
• Fields to Update: Key-value pairs for the data to update

Optional Fields:

• Schema: Database schema (defaults to “public”)
• Response Mapping: Map updated data to variables

​

4. Delete Rows

Remove records from your database tables.

Required Fields:

• Table Name: The name of the table to delete from
• Filter Conditions: Conditions to identify which records to delete

Optional Fields:

• Schema: Database schema (defaults to “public”)
• Response Mapping: Map deleted data to variables

​

Complete Workflow Example

Let’s create a customer support ticket system using Supabase integration.

​

Step 1: Create a Support Tickets Table

First, create a table in your Supabase database with these columns:

• id: Primary key (auto-increment)
• customer_name: Text
• customer_email: Text
• issue_type: Text
• description: Text
• status: Text (default: “open”)
• created_at: Timestamp (default: now())
• priority: Text (default: “medium”)

​

Step 2: Collect Customer Information

Create a Text Block to collect the customer’s information:

Hi! I'm here to help you create a support ticket.

Please provide the following information:
- Your name: {{customer_name}}
- Your email: {{customer_email}}
- Issue type: {{issue_type}}
- Description of the problem: {{description}}
- Priority level (low/medium/high): {{priority}}

​

Step 3: Create the Support Ticket

Add a Supabase Block with the Create Row action:

Configuration:

• Table Name: support_tickets
• Fields:
  • customer_name: {{customer_name}}
  • customer_email: {{customer_email}}
  • issue_type: {{issue_type}}
  • description: {{description}}
  • priority: {{priority}}
  • status: open

Response Mapping:

• Map “Row Created” to variable {{ticket_data}}
• Map “Table Name” to variable {{table_name}}

​

Step 4: Confirmation Message

Add another Text Block to confirm ticket creation:

✅ Your support ticket has been created successfully!

Ticket Details:
- Ticket ID: {{ticket_data.id}}
- Status: {{ticket_data.status}}
- Priority: {{ticket_data.priority}}
- Created: {{ticket_data.created_at}}

We'll get back to you at {{customer_email}} soon!

​

Step 5: Ticket Status Lookup

Create a flow for customers to check their ticket status:

Text Block to collect ticket ID:

Please enter your ticket ID to check the status: {{ticket_id}}

Supabase Block with Get Rows action:

• Table Name: support_tickets
• Filter Conditions: id equals {{ticket_id}}
• Return Type: “First”

Response Mapping:

• Map “Rows Found” to variable {{ticket_info}}

Status Display Block:

📋 Ticket Status Report

Ticket ID: {{ticket_info.id}}
Customer: {{ticket_info.customer_name}}
Issue Type: {{ticket_info.issue_type}}
Status: {{ticket_info.status}}
Priority: {{ticket_info.priority}}
Created: {{ticket_info.created_at}}

Description: {{ticket_info.description}}

​

Step 6: Update Ticket Status (Admin Flow)

For support staff to update ticket status:

Supabase Block with Update Rows action:

• Table Name: support_tickets
• Filter Conditions: id equals {{ticket_id}}
• Fields to Update:
  • status: {{new_status}}

​

Best Practices

​

Security

• Always use the service_role key for server-side operations
• Implement Row Level Security (RLS) policies in Supabase
• Validate user inputs before database operations

​

Performance

• Use specific column selection instead of SELECT * when possible
• Add appropriate indexes for frequently filtered columns
• Use pagination with LIMIT for large datasets

​

Error Handling

• Always include filter conditions for UPDATE and DELETE operations
• Test your database operations thoroughly before deployment
• Use Response Mapping to capture and handle operation results

​

Data Validation

• Validate required fields before database operations
• Use appropriate data types in your Supabase schema
• Implement constraints and default values in your database

​

Filter Conditions

When using filters in Get Rows, Update Rows, or Delete Rows actions, you can use various operators:

• Equals: Exact match
• Not Equals: Exclude exact matches
• Greater Than: Numeric/date comparisons
• Less Than: Numeric/date comparisons
• Contains: Text search within fields
• Starts With: Text prefix matching
• Ends With: Text suffix matching
• Is Empty: Check for null/empty values
• Is Not Empty: Check for non-null values

​

Response Mapping Options

Each action provides different response mapping options:

Create Row:

• Row Created: The newly created record
• Table Name: Name of the table

Get Rows:

• Rows Found: Array of matching records
• Table Name: Name of the table
• Rows Count: Number of records found

Update Rows:

• Updated Rows: Array of updated records
• Table Name: Name of the table
• Updated Count: Number of records updated

Delete Rows:

• Deleted Rows: Array of deleted records
• Table Name: Name of the table
• Deleted Count: Number of records deleted

​

Troubleshooting

​

Common Issues

1. Authentication Errors: Ensure you’re using the service_role key, not the anon key
2. Table Not Found: Verify table names are correct and case-sensitive
3. Permission Denied: Check your RLS policies if enabled
4. Row Level Security (RLS) Policy Violations: If you get an error like "new row violates row-level security policy for table" with a 401 Unauthorized status, you need to either:
   • Disable RLS for your table (go to Authentication > Policies in Supabase dashboard)
   • Create appropriate RLS policies that allow your service_role key to perform operations
   • For testing purposes, you can temporarily disable RLS by running: ALTER TABLE your_table_name DISABLE ROW LEVEL SECURITY;
5. Filter Errors: Ensure filter conditions use correct column names and data types

​

Debugging Tips

• Use the browser’s developer tools to inspect network requests
• Check Supabase logs in your dashboard for detailed error messages
• Test database operations directly in Supabase SQL editor first
• Verify your table schema matches the data you’re sending

​

Validation and Testing

Before deploying your agent:

1. Test Each Operation: Verify Create, Read, Update, and Delete operations work correctly
2. Validate Filters: Ensure filter conditions return expected results
3. Check Response Mapping: Confirm mapped variables contain the correct data
4. Test Error Scenarios: Verify graceful handling of invalid inputs or database errors
5. Performance Testing: Test with realistic data volumes

With these configurations, your Release0 agent can perform sophisticated database operations using Supabase, creating dynamic and personalized user experiences.
