The Picture Choice User Input Block enables users to make selections from predefined, visually illustrated options. It supports single and multiple-choice configurations and dynamic data integration for flexible use cases.

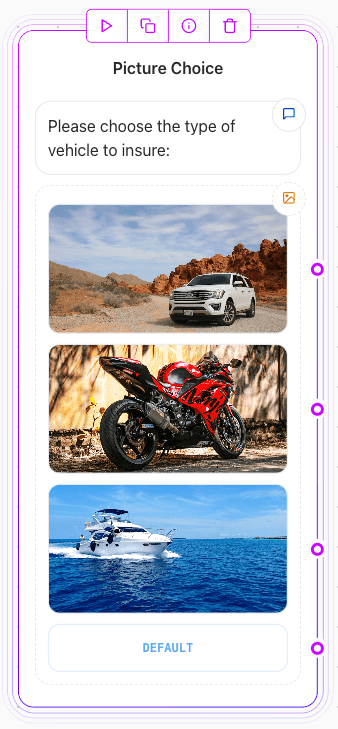

Release0.com - Agent Picture Choice block

​
Key Features

  1. Predefined Options: Use static images with labels and values for manual configurations.
  2. Dynamic Items: Populate images, labels, and descriptions dynamically using variables.
  3. Single/Multiple Choice: Enable users to select one or more options.
  4. Customizable Submit Button: Change the label of the submission button to fit your workflow.

​
Configuration Steps

​
1. Static Configuration

To manually set up static choices:
  • Add the Picture Choice Input Block to your workflow.
  • Upload images and assign title and description to represent options. You can leave the description and/or title empty if not needed.

​
2. Enabling Multiple Choice

To allow users to select multiple options:
  1. Toggle the Multiple Choice? option in the settings panel.
  2. When enabled, users can select multiple items before submitting their choices.

​
3. Dynamic Items

To dynamically populate images, titles, and descriptions:
  1. Toggle the Dynamic Items? option in the settings.
  2. Link Images, Titles, and Descriptions to variables in your database or API response.
For advanced configuration, check out the Buttons Choice block documentation. It works the same way and offers similar dynamic rendering capabilities with text-based buttons instead of images.
